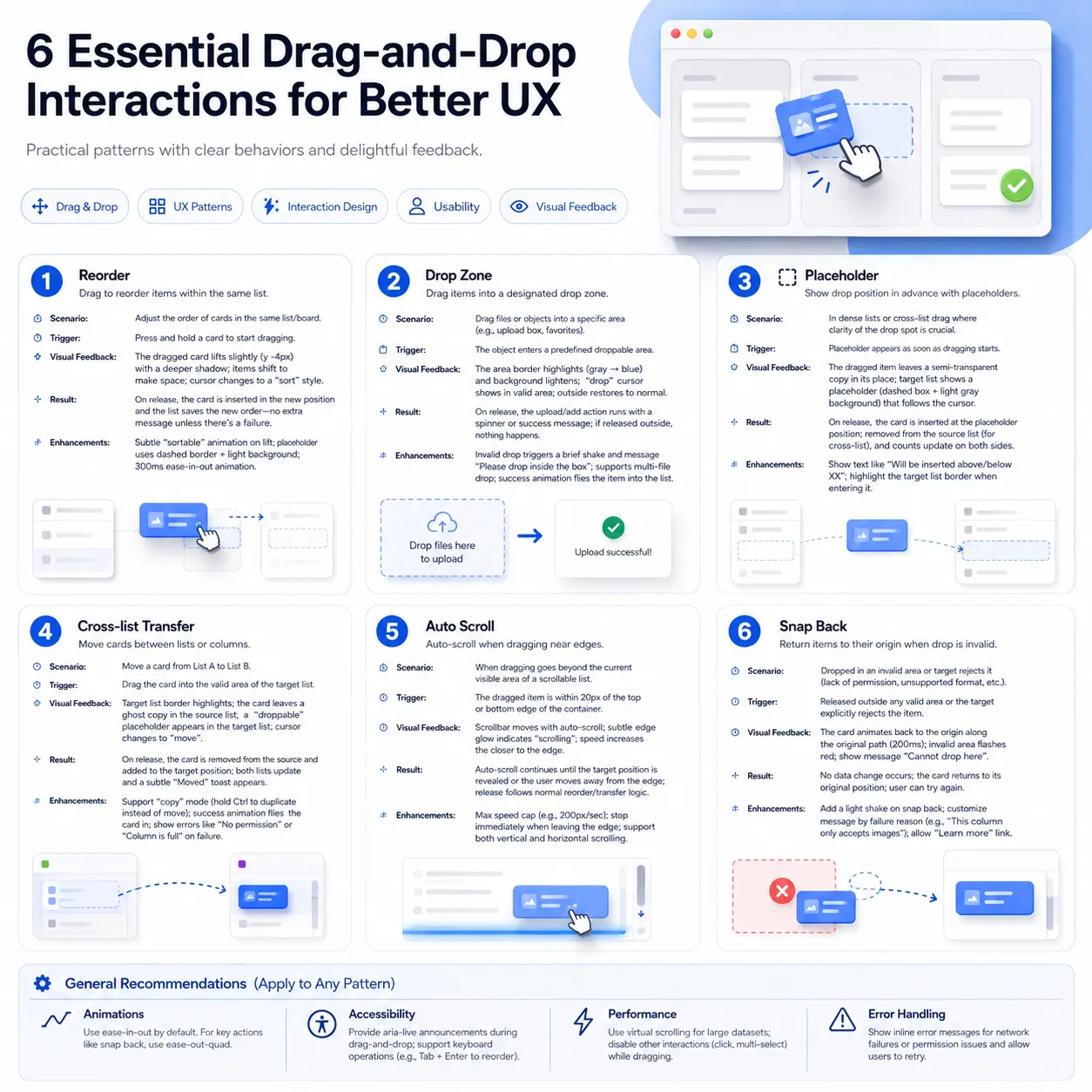

6 Essential Drag-and-Drop Interactions for Better UX

Keywords: Drag and Drop, UX Patterns, Interaction Design, Usability, Visual Feedback

6 Essential Drag-and-Drop Interactions for Better UX

6 Essential Drag-and-Drop Interactions for Better UX

Below is a ready-to-use specification you can copy directly into an AI coding or UI generation tool. It covers six common drag-and-drop interaction patterns using a consistent structure:

Scenario → Trigger → Visual Feedback → Result → Optional Enhancements

The wording is optimized for natural English-speaking product, UI/UX, and development workflows while preserving the original meaning.

1. Reorder — Drag to Reorder Items

Scenario

Allow users to rearrange cards or items within the same list, board, or column.

Trigger

The interaction begins when the user clicks or presses and holds a card, then starts dragging it.

Visual Feedback

  • Slightly lift the dragged card upward, approximately translateY(-4px).
  • Increase the card’s shadow to make it feel elevated above the interface.
  • As the card moves through the list, nearby items should automatically shift aside to reveal the potential insertion point.
  • Change the cursor to indicate that the item can be reordered.

Result

When the user releases the card, insert it into the new position and save the updated order.

No additional confirmation message is necessary unless the action fails.

Optional Enhancements

  • Add a subtle pickup animation when dragging begins.
  • Use a placeholder with a dashed border and light background.
  • Use a 300ms transition with an ease-in-out curve.
  • Keep movement smooth and avoid abrupt position changes.

Plain-Language AI Instruction

Create a card-based drag-to-reorder interaction. When the user picks up a card, slightly lift it and add a stronger shadow. As the card moves through the list, surrounding items should automatically make room and clearly show the insertion point. When the user releases the card, place it in the new position and save the updated order. Keep all animations smooth and natural.

2. Drop Zone — Drag Items into a Defined Area

Scenario

Allow users to drag files or other objects into a designated area, such as an upload box, collection, folder, or favorites panel.

Trigger

Activate the drop state when the dragged object enters a predefined valid drop zone.

Visual Feedback

  • Highlight the drop-zone border, transitioning from neutral gray to blue.
  • Slightly brighten or tint the background.
  • Show a valid-drop cursor while the object is inside the accepted area.
  • Return the drop zone to its default state when the object leaves.

Result

If the user releases the object inside the valid area, perform the associated action, such as uploading or adding the item.

Show a loading spinner while processing and a brief success message when complete.

If the user releases the object outside the valid drop zone, do nothing.

Optional Enhancements

  • If the object is dropped in an invalid location, briefly shake the target and show a message such as “Drop the item inside the highlighted area.”
  • Support multiple-file drag and drop.
  • After a successful upload, animate the new item into the destination list.

Plain-Language AI Instruction

Create a drag-and-drop zone that becomes active only when a draggable item enters the valid area. Highlight the border and slightly brighten the background while the item is inside. Only perform the upload or add action when the user releases the item within the valid zone. Show a success message after completion. If the item is released outside the zone, do nothing.

3. Placeholder — Preview the Drop Position

Scenario

Use a placeholder when working with dense lists or moving items between lists so users can clearly see where the dragged item will be inserted.

Trigger

Display the placeholder as soon as the drag operation begins.

Visual Feedback

  • Keep a semi-transparent ghost version of the dragged item in its original location.
  • In the destination list, create space for a placeholder before the item is dropped.
  • Style the placeholder with a dashed border and light gray background.
  • Continuously update the placeholder position as the cursor moves.

Result

When the user releases the item, insert it exactly where the placeholder appears.

For cross-list dragging, remove the item from its original list and update the item counts in both lists.

Optional Enhancements

  • Add contextual text such as “Insert above XX” or “Insert below XX.”
  • Highlight the destination list border when the dragged item enters it.

Plain-Language AI Instruction

Create a drag-and-drop placeholder interaction. While dragging, keep a semi-transparent copy of the item in its original position. In the destination list, show a placeholder that previews exactly where the item will be inserted and update its position as the user moves the cursor. On release, insert the item at the placeholder position. If the item moves between lists, remove it from the original list and update both lists immediately.

4. Cross-list Transfer — Move Items Between Lists

Scenario

Allow users to move a card from List A or one board column to List B or another column.

Trigger

Activate the transfer state when the dragged card enters a valid destination list.

Visual Feedback

  • Highlight the border of the destination list.
  • Keep a semi-transparent ghost copy of the card in the original list.
  • Show a valid insertion placeholder inside the destination list.
  • Change the cursor to indicate a move operation.

Result

When the user releases the card:

  • Remove it from the original list.
  • Insert it at the selected position in the destination list.
  • Update both lists immediately.
  • Show a short, unobtrusive “Moved” confirmation.

Optional Enhancements

  • Support a copy mode: holding Ctrl creates a duplicate instead of moving the original.
  • Add a brief fly-in animation after a successful move.
  • If the transfer fails, show a specific reason such as:
    • “You don’t have permission to move items here.”
    • “This column has reached its limit.”

Plain-Language AI Instruction

Create a cross-list drag-and-drop interaction. While dragging, leave a semi-transparent ghost copy in the original list. Highlight the destination list and show an insertion placeholder when the card enters a valid area. When released, remove the card from the original list and add it to the selected position in the destination list. Update both lists immediately and show a brief success confirmation.

5. Auto Scroll — Scroll Automatically Near Container Edges

Scenario

Automatically scroll a list or container when the user drags an item beyond the currently visible area.

Trigger

Start auto-scrolling when the dragged item comes within 20px of the top or bottom edge of the scrollable container.

Visual Feedback

  • Keep the scrollbar visible and moving normally as the container scrolls.
  • Add a subtle edge indicator, such as a soft glow, to communicate that automatic scrolling is active.
  • Increase scrolling speed as the dragged item moves closer to the edge.

Result

Continue scrolling until:

  • The desired destination becomes visible, or
  • The user moves the dragged item away from the edge.

When the user releases the item, continue with the standard reorder or cross-list transfer behavior.

Optional Enhancements

  • Limit scrolling speed to a reasonable maximum, for example 200px per second.
  • Stop scrolling immediately when the pointer leaves the edge activation area.
  • Support both vertical and horizontal auto-scrolling.

Plain-Language AI Instruction

Create edge-triggered auto-scroll behavior for drag-and-drop. When a dragged card comes within 20px of the top or bottom edge of a scrollable list, automatically scroll in that direction. The closer the card gets to the edge, the faster the list should scroll. Stop scrolling immediately when the card moves away from the edge. Keep the normal scrollbar visible throughout the interaction.

6. Snap Back — Return Invalid Drops to Their Original Position

Scenario

Return an item to its original position when it is dropped in an invalid area or when the target cannot accept it.

Examples include insufficient permissions, unsupported file formats, or restricted destination columns.

Trigger

Trigger the snap-back behavior when:

  • The user releases the item outside all valid drop zones, or
  • The destination explicitly rejects the item.

Visual Feedback

  • Animate the card quickly back to its original position along a natural return path.
  • Use a snap-back duration of approximately 200ms.
  • Briefly highlight the invalid destination in red.
  • Display a message such as “Can’t drop here.”

Result

Do not modify any data.

The card returns to its original location, and the user can immediately try again.

Optional Enhancements

  • Add a slight shake when the card snaps back.
  • Customize the error message based on the reason for rejection, for example:
    • “This column only accepts image files.”
    • “You don’t have permission to move items here.”
  • Provide a “Learn more” action when additional explanation is useful.

Plain-Language AI Instruction

Create a snap-back interaction for invalid drag-and-drop actions. If the user drops a card outside a valid area or the target rejects it, quickly animate the card back to its original position. Briefly highlight the invalid destination with a red border and display a “Can’t drop here” message. Do not make any changes to the underlying data.

General Recommendations

These guidelines can be appended to any of the prompts above.

Animation

Use ease-in-out as the default animation curve.

For fast directional actions such as snap-back, use an ease-out style curve, such as ease-out-quad.

Animations should reinforce the interaction rather than slow it down.

Accessibility

Provide accessible drag-and-drop announcements using aria-live.

Include keyboard-based alternatives for users who cannot use pointer-based dragging.

For example:

1
2
3
4

Tab → Focus item
Enter → Enter reorder/move mode
Arrow Keys → Choose destination
Enter → Confirm
